[Cabines] Doseurs d'abrasifs | Vente en ligne

Metering gate valve FSV

Ref Description Price ht € Quantity

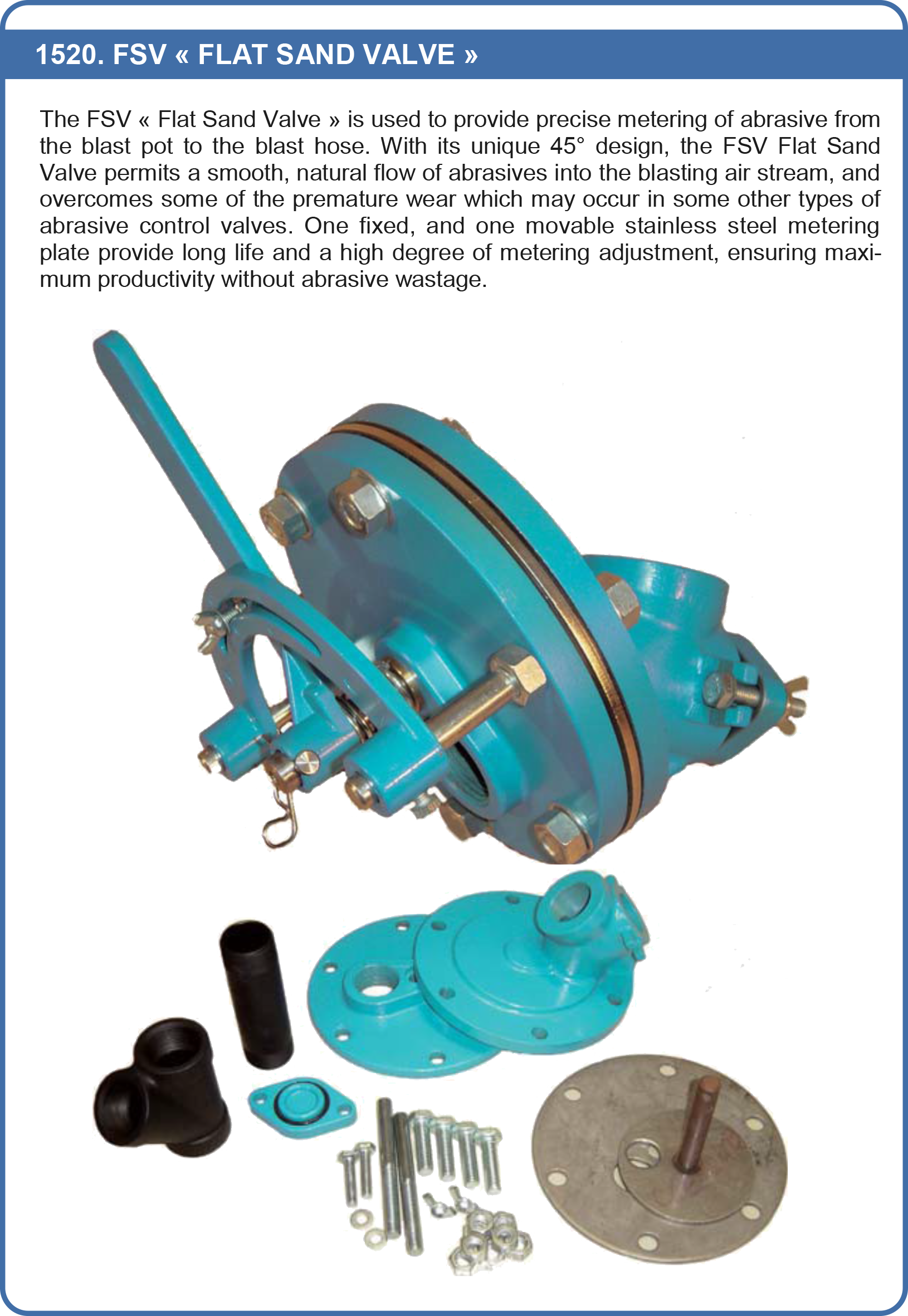

1520 1 1/4 FF, Metering gate valve 119.20

SGV valve

Ref Description Price ht € Quantity

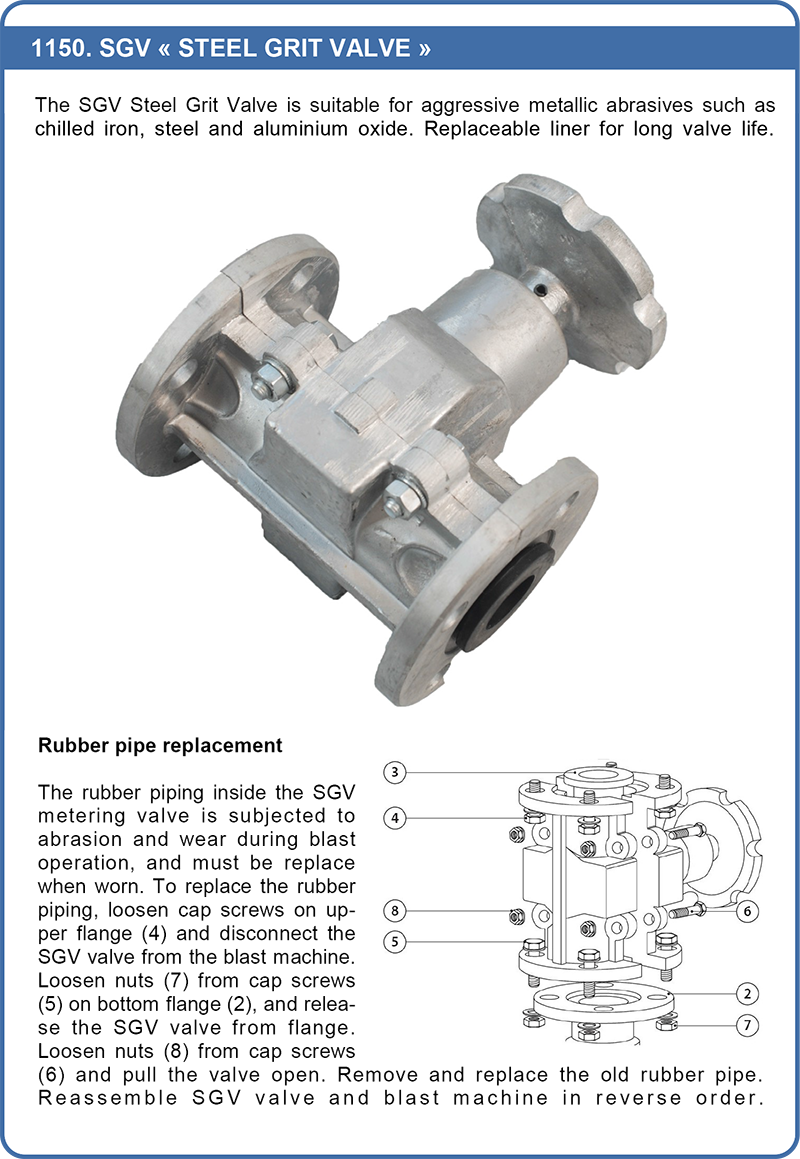

1150 1 1/4, SGV valve, special for steel or aggressive blast media 106.90

Metering gate valve « Micro Valve »

Ref Description Price ht € Quantity

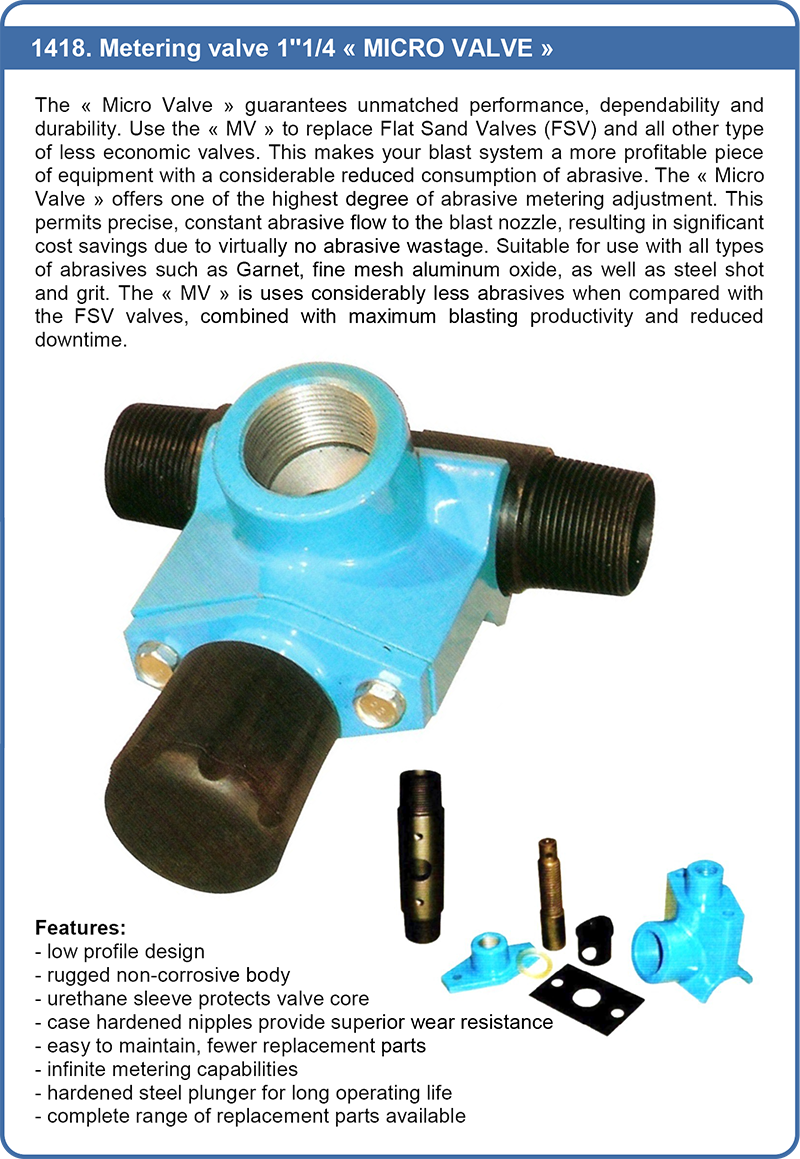

1418 Metering valve 1 1/4 419.80

Metering gate valve 1''1/4

Ref Description Price ht € Quantity

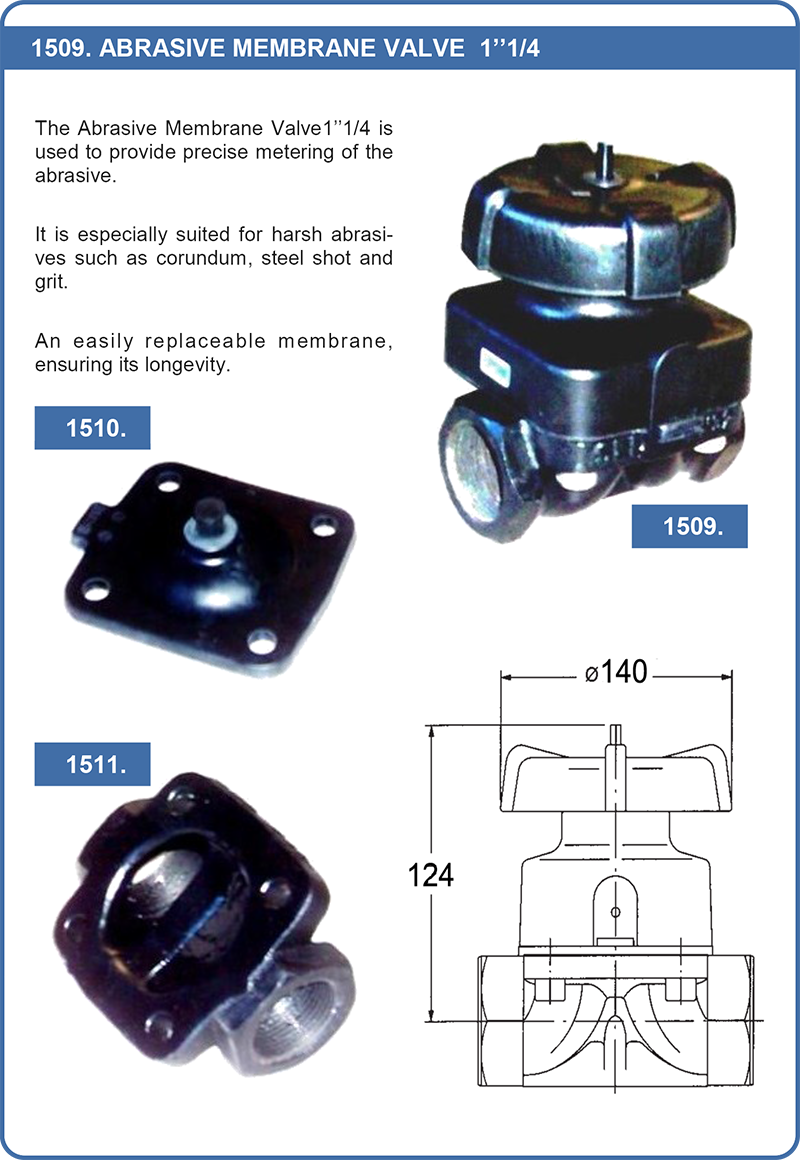

1509 Metering valve 1 1/4 350.50

Metering gate valve 1''1/2

Ref Description Price ht € Quantity

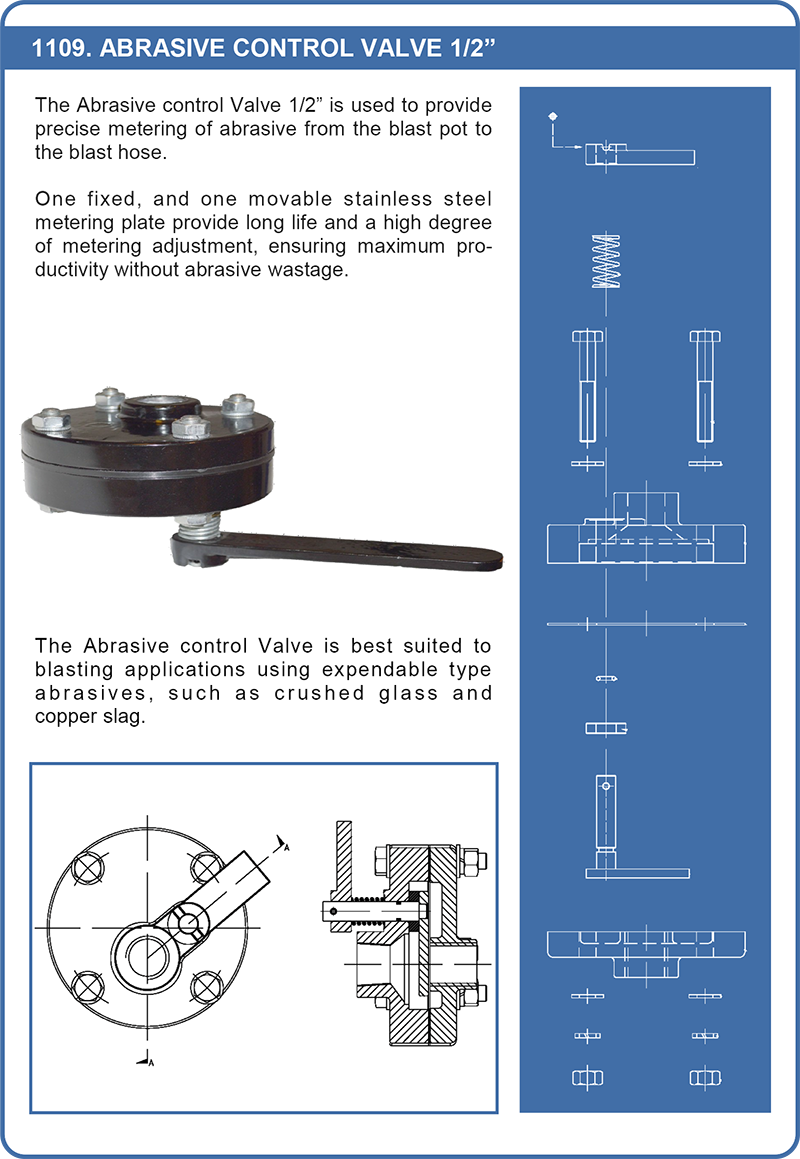

1109 Abrasive metering valve 1/2 190.10
Ref Description Price ht € Quantity
1521 Screw M12x45 mm 1.10
1522 Upper body 126.10
1523 Rubber gasket 2.20
1524 Valve 80.60
1525 Disc 82.10
1526 Lower body 92.80
1527 Nut 1.10
1528 Head cap screw 35 mm 1.10
1529 Handle bolt spacer 3.30
1530 Washer 6 mm 0.70
1531 Wing nut M6 1.10
1532 Gauge unit 10.00
1533 Pin 1.10
1534 Handle pin 1.10
1535 Control handle 26.40
1536 Compressing spring 1.90
1537 Packing gland 2.50
1538 Packing 3.90
1539 Washer 0.70
1540 Inspection plate bolt М8х35 mm 1.10
1541 O-ring 0.70
1542 Inspection plate 10.80
1543 Wing nut M8 2.20
1544 Set screw 2.60
Ref Description Price ht € Quantity
1151 Rubber pipe for SGV valve 64.00
1152 Rubber pipe for SGV valve 98.80
1153 Rubber pipe for SGV valve 98.80
1154 Threaded flange 1 1/4 for SGV valve, Aluminium 30.70
1155 Threaded flange 1 1/4 for SGV valve 40.00
1156 Upper body 72.50
1157 Lower body 60.90
1158 Plug 56.00
1159 Control system 68.10
1160 Washer 8.60
1161 Control handle 38.90
1162 Handle pin 5.90
Ref Description Price ht € Quantity
1419 Gasket Repair kit 90.60
1420 Pipe 1 1/4 (MM) 139.80
Ref Description Price ht € Quantity
1510 Membran for Metering valve 1 1/4 66.90
1511 Lower body 1 1/4 229.50
