structural steel

Main doors

Emergency exit

All safety block: door contact + red light

Lexan porthole with thickness 100 mm

Main door hinge assembly

Ref Description Price ht € Quantity
9001 structural steel 0.00
9002 Double skin metal faced insulating panels 100 mm + 2 x 0,6 mm steel, M1, Ral 1015 and 9010 0.00
9912 Double skin metal faced insulating panels width: 1m x Length: 1 m 52.90
9922 Double skin metal faced insulating panels width: 1m x Length: 2 m 105.80
9932 Double skin metal faced insulating panels width: 1m x Length: 3 m 158.80
9942 Double skin metal faced insulating panels width: 1m x Length: 4 m 211.70
9952 Double skin metal faced insulating panels width: 1m x Length: 5 m 264.60
9962 Double skin metal faced insulating panels width: 1m x Length: 6 m 317.50
9972 Double skin metal faced insulating panels width: 1m x Length: 7 m 370.40
9982 Double skin metal faced insulating panels width: 1m x Length: 8 m 423.40
9992 Double skin metal faced insulating panels width: 1m x Length: 9 m 476.30
9004 Main doors 0.00

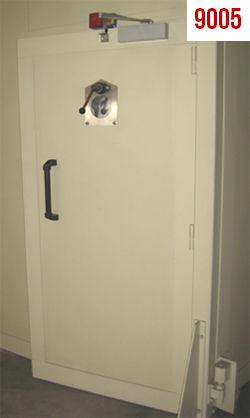

9005 Emergency exit 0.00
9006 All safety block: door contact + red light 189.80
9906 Bloc contact de porte 141.60
9916 Bloc voyant rouge 93.30
9007 Bulb 24V 9.20
9008 Red cover 44.80
9009 Roller switch 82.00
9010 Contact angle 28.80
9011 Porthole door with security stainless 451.50
9012 Handle for the window 32.20
9013 Front or rear flange 97.80
9013 Front or rear flange 97.80
9014 Bearing plate 40.10
9015 Lexan porthole with thickness 100 mm 70.40
9016 Protective shutter 90.00
9017 Door handle length 400 (no. 2) 113.20
9917 Poignet de porte lg 400 56.60
9018 Automatic door closer 185.60
9019 Closure assembly of main door 765.10
9020 Lever door handle 62.00
9021 shaft 357.90
9022 Rod 103.80
9023 guiding 42.60
9024 bearing plate 97.70
9025 Main door hinge assembly 593.60
9026 Adjusting rod 201.10
9027 Lower hinge block 203.20
9028 Bronze guide ring 117.60
9029 Steel Ball 62.20
9032 Neon strip 2 x 58 W 54.20
9033 58 W Neon 3.00
9034 Gasket seal for light (per meter) 10.80
9035 lexan window 94.60
9036 Clamping nut 9.30
9037 Frame protection 203.40
9038 Overall protection rubbers width 1400 0.00
9039 Rubber support, width: 1400 mm 72.30
9041 Whole block exit (as option) 504.00
9042 Support block emergency 378.80
9043 Safety block 137.40
9044 Lexan glass protection 32.40
9045 Gasket seal for Safety block glass 14.20

Bulb 24V

Red cover

All safety block: door contact + red light

Roller switch

Automatic door closer

Bearing plate

Safety block
